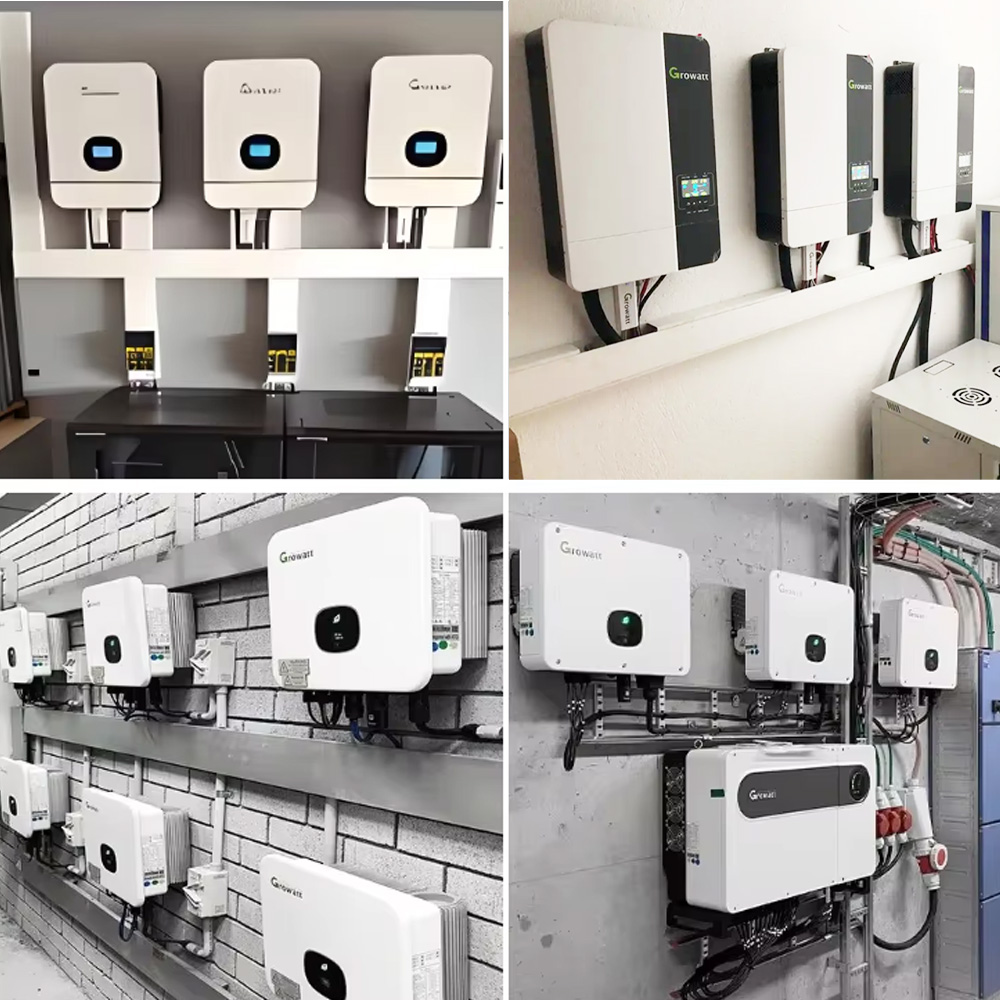

Details

---

• Max. efficiency 98.4%
• Dual MPP tracker
• Type II SPD on DC side
• Battery ready, future proof
• 24h self-consumption monitoring

Datasheet	MIN 2500TL-XH	MIN 3000TL-XH	MIN 3600TL-XH	MIN 4200TL-XH	MIN 4600TL-XH	MIN 5000TL-XH	MIN 6000TL-XH
Input dats (DC)
Max. recommended PV power(for module STC)	5000W	6000W	7200W	8400W	9200W	10000W	10000W
Max. DC voltage	500V	500V	550V	550V	550V	550V	550V
Start voltage	100V
Nominal voltage	360V
MPP voltage range	70V-500V	70V-500V	70V-550V	70V-550V	70V-550V	70V-550V	70V-550V
No. of MPP trackers/strings per  MPP tracker	2/1
Max. input current per MPP tracker	13.5A
Max. short-circuit current per  MPP trackers	16.9A
Input data(DC battery)
Compatible battery	ARK XH Battery System (5.12KWh~17.9KWh)
Operating voltage range	360-500V		360-550V
Max.operating current	17A
Max.charge power	6000W
Max. discharge power	2500W	3000W	3600W	4200W	4600W	5000W	6000W
Output data(AC)
AC nominal power	2500W	3000W	3600W	4200W	4600W	5000W	6000W
Max. AC apparent power	2500VA	3000VA	3600VA	4200VA	4600VA	5000VA	6000VA
Nominal AC voltage(range*)	230V(180-280V)
AC grid frequency(range*)	50/60 Hz(45-55Hz/55-65 Hz)
AC output current	11.3A	13.6A	16A	19A	20.9A	22.7A	27.2A
Adjustable power factor	0.8leading...0.8lagging
THDi	＜3%
AC grid connection type	single phase
Output data(Backup*)
Max. apparent power	2500VA	3000VA	3600VA	4200VA	4600VA	5000VA	6000VA
Nominal AC voltage	230V
AC grid frequency	50/60Hz
Efficiency
Max. eddiciency	98.2%	98.2%	98.2%	98.4%	98.4%	98.4%	98.4%
European efiiciency	97.1%	97.1%	97.2%	97.2%	97.5%	97.5%	97.5%
MPPT efficiency	99.9%
Protection devices
DC REVERSE POLARITY PROTECTION	Yes
DC switch	Yes
DC/AC surge protection	Type II/Type II
Insulation resistance monitoring	Yes
AC short-circuit protection	Yes
Ground fault monitoring	Yes
Grid monitoring	Yes
Anti-islanding protection	Yes
Residual-current monitoring unit	Yes
AFCI protection	Optional
General data
Dimensions(W/H/D)	375/350 160mm
Weight	10.8kg
Operating temperature range	-25°C...+60°C
Altitude	4000m
Self-Consumption night	＜10W
Topology	Transformerless
Cooling	Natural convection
Protection degree	IP65
Relative humidity	0%~100%
DC connection	H4/MC4(Optional)
AC connection	Connector
Display	OLED+LED/WIFI+APP
Interfaces: RS485 /USB/Wi-Fi/ GPRS/RF/LAN	Yes/Yes/Optional/Optional/Optional
Warranty: 5 years / 10 years	Yes/Optional
CE, IEC62109, AS/NZS4777.2, CEIO-21, VDE-AR-N4105, VDE0126-1-1, UTEC 15-712-1, EN50549, IEC62116, IEC61727, G98/G99
