SR6I-M HALF-CELL series is produced with high efficiency multi-busbar cells, whic can reduce the module internal power loss to improve its conversion efficiency, as well as lower the dailure risk caused by cracks and broken busbar to enhance the module reliability. Combined with half-cell technology, the module is highly resistant to hot-spot crisis caused by shadow effect.

ELECTRICAL DATA(STC)
Rated Power in Watts-Pmax(WP)	390W	395W	400W	405W	410W	415W	420W
Open Circuit Voltage-Voc	49.0V	49.2V	49.4V	49.6V	49.8V	50.0V	50.2V
Short Circuit Current-Isc(A)	10.15A	10.25A	10.35A	10.40A	10.47A	10.54A	10.61A
Maximum Power Voltage-Vmp(V)	39.7V	39.90V	40.10V	40.30V	40.5V	40.70V	40.90V
Maximum Power Current-Imp(A)	9.82A	9.92A	10.02A	10.05A	10.13A	10.19A	10.27A
Module Efficiency(%)	19.38%	19.63%	19.88%	20.13%	20.38%	20.63%	20.87%



ELECTRICAL DATA(NOCT)
Maximum Power-Pmax(Wp)	291W	295W	298W	302W	306W	310W	313W
Open Circuit Voltage-Voc(V)	45.91V	46.10V	46.29V	46.48V	46.66V	46.85V	47.04V
Short Circuit Current-Isc(A)	8.20A	8.28A	8.36A	8.40A	8.46A	8.52A	8.57A
Maximum Power Voltage-Vmp(V)	36.99V	37.08V	37.18V	37.53V	377.73V	37.93V	38.09V
Maximum Power Current-Imp(A)	7.87A	7.95A	8.03A	8.05A	8.11A	8.16A	8.23A



MECHANICAL DATA
Solae cells	Half-Cell Mono 158.75x158.75mm, 9Bus bars
Cell configuration	144 Cells(6x24)
Module dimensions	2008x1002x35mm
Weight	22.5KGS
Front Cover	3.2mm Tempered Glass
Frame Material	Anodized Aluminum Alloy
J-Box	IP67 or IP68, 3Diodes
Cable	4mm²（IEC）/12AWG(UL),300mm
Connectors	MC4 or MC4 Comparable
Standard Packing	31pcs/pallet



TEMPERATURE & MAXIMUM PATINGS
Nominal Operating Cell Temperature(NOCT)	45°C+-2°C
Temperature Coefficient of Voc	-0.32%/°C
Temperature Coefficient of Isc	0.05%/°C
Temperature Coefficient of Pmax	-0.34%/°C
Operational Temperature	-40~+85°C
Maximum System Voltage	1500V(IEC)
Max Series Fuse Rating	20A

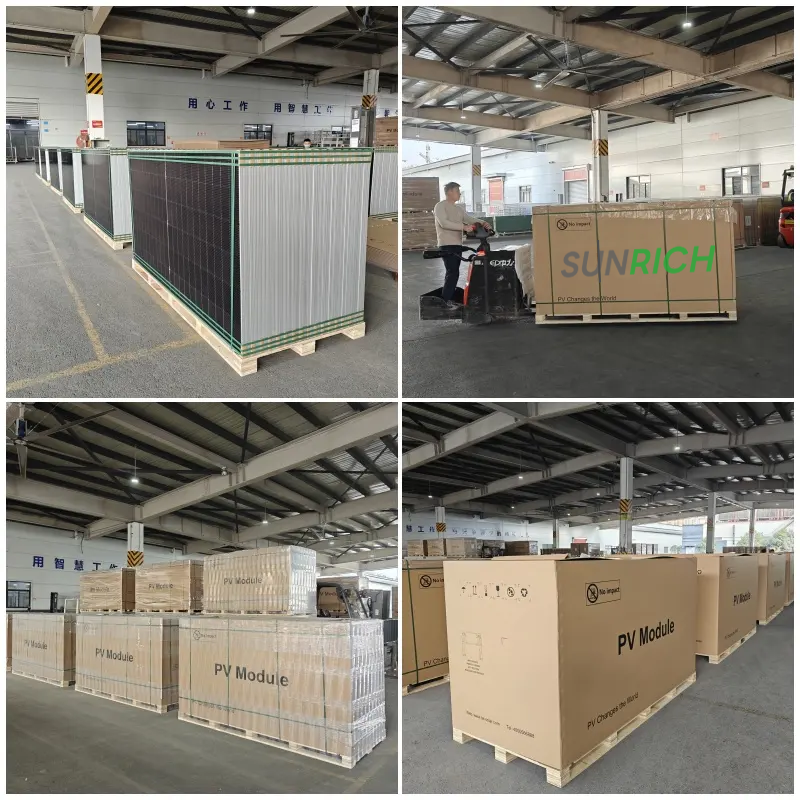

PACKAGING CONFIGURATION
	40HQ
Modules per container	726pcs
Package	31pcs/pallet, 2pcs/carton
Package Number	22pallets + 22cartons
