Horizontal All in One Energy Storage System
Category: All in One Energy Storage System
Specifications
Details

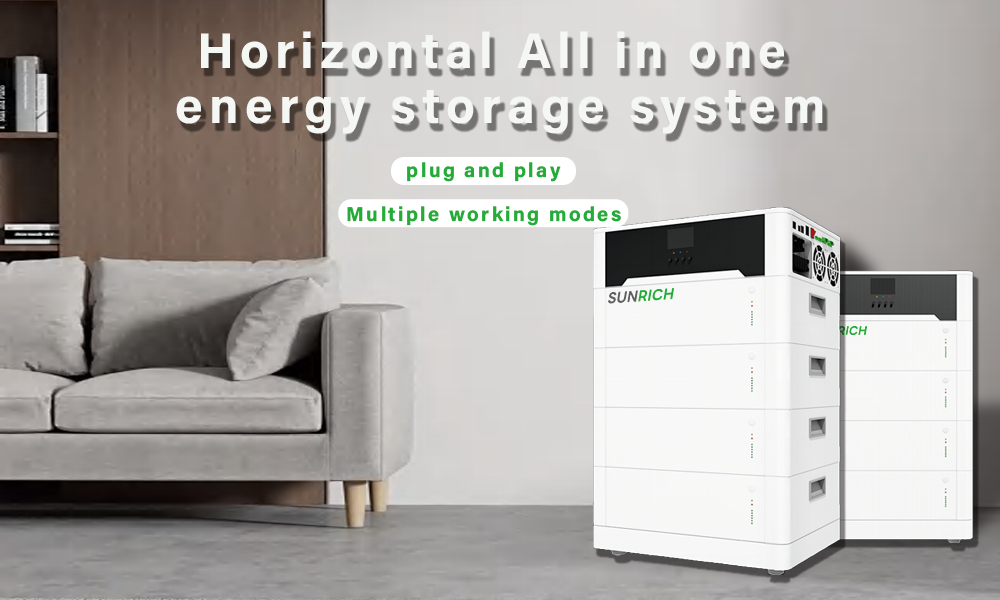

Product Display
.png)
Safe and Reliable
- New class A high-reliability lithium iron phosphate battery, green and environmentally friendly
- Intelligent integrated BMS, all-round protection strategy and fault detection
- Modular design, parallel expansion, flexible choice of voltage and capacity
- Large capacity, high charging and discharging efficiency, more than 6000 cycles
- Built-in fire extinguishing device, automatically deal with ultra-early warning thermal runaway status
- Bottom universal wheel design, stacked type is easy to install and easy to maintain
- Multi-function design, ON/OFF switch control output
- LCD display, dynamic display of system operating status data
| Product Decription | Product parameters | |
| Inverter module | INV05KLP1-2.5 | INV10KLP1-5.0 |
| Output | ||
| Rated output power | 5,000W | 10,000W |
| Maximum peak power | 10,000VA | 20,000VA |
| Motor load capacity | 4HP | 6HP |
| Wave form | PSW(Pure Sine Wave) | PSW(pURE sINE wAVE) |
| Rated output voltage | 220V ac (single phase) | 220V ac(single phase) |
| Maximum parallel capacity | 2 units(up to 10KW) | 2 units (up to 20KW) |
| Output mode | Off-grid/Hybrid | Off-grid/Hybrid |
| Solar input | ||
| Types of solar charging | MPPT | MPPT |
| Maximum solar array power | 5,500W | 5,500W+5500W |
| Maximum solar open-circuit voltage | 500Vdc | 500Vdc+500Vdc |
| Grid/generstor inputs | ||
| Input voltage range | 90~280Vac | 90~280Vac |
| Bypass overload current | 40A | 63A |
| Battery charging | ||
| Maximum solar charging current | 100A | 200A |
| Maximum grid/generator charging | 60A | 120A |
| Routine | ||
| Dimensions(LxWxHmm) | 480x330x135 | 600x440x165 |
| Weight(Kg) | ~13 | ~27 |
| Battery module | PC-AIOS2.5B | PC-AIOS05B |
| Battery power | 2.56KWh | 5.12KWh |
| Rated voltage | 51.2V | 51.2V |
| Rated capacity | 50Ah | 100Ah |
| Battery type | Square LFP | Square LFP |
| Cycle life | ≥6000（80% DOD , 0.5C, 25°C） | ≥6000（80%DOD, 0.5C, 25°C） |
| Maximum parallel capacity | 4 units(max. 10.24KWh) | 4 units(max. 20.48KWh) |
| Dimensions(LxWxHmm) | 480x330x135 | 600x440x165 |
| Weight(Kg) | ~25 | ~45 |
| Standard | UN38.3, MSDS, IEC62619:2017, EN IEC61000-3-2, EN IEC61000-6-1, RoHS | |
Battery Features
- Original Class A high-reliability lithium iron phosphate battery, green and environmentally friendly
- Intelligent integrated BMS, all-round protection strategy and fault detection
- Supporting off-grid/hybrid output
- Multiple charging and discharging modes are available
- Play and plug design, easy to install
- Up to two systems in parallel, with dual storage and output
- Supporting for monitoring real-time dats through the app
- LCD display, dynamic of system operating status data
