Details

---

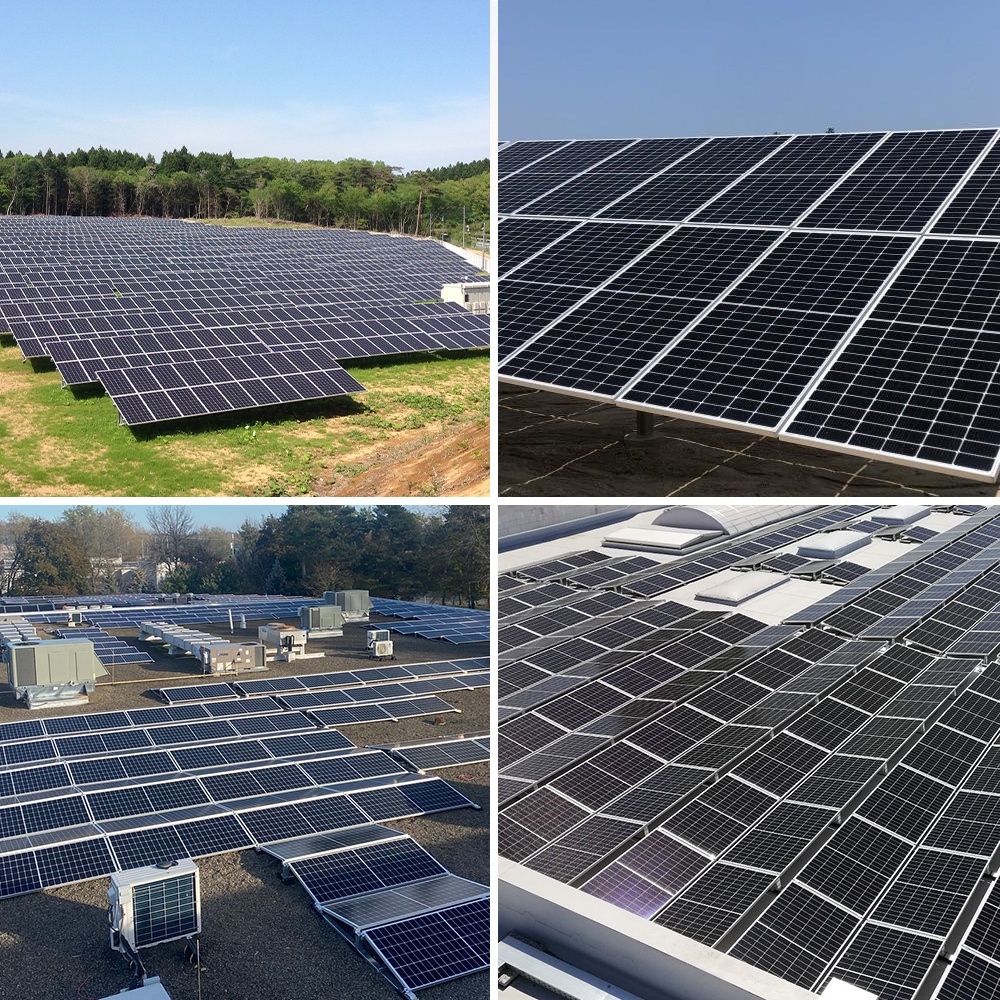

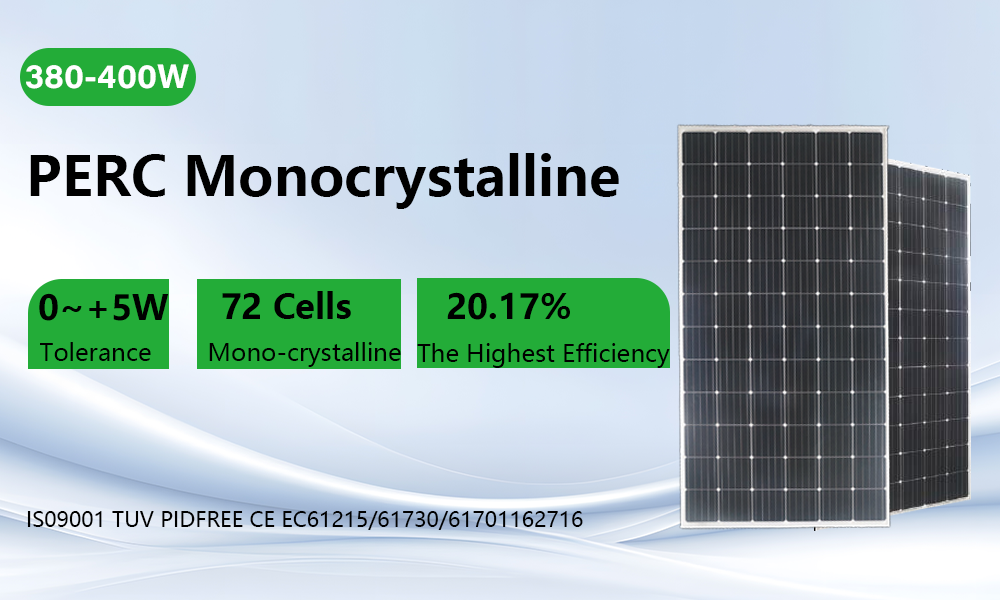

SR6S-M is a robust solar module with 72 solar cells, these modules can be used for on-grid solar applications, our meticulous design and production techniques ensure a high-yiels, long-term performance for every module produced, our rigorous quality control and in-house testing facilities guarantee Sunrich Solar's modules meet the highes quality standards possible.
SR6S-M have five instead of three bus bar, which allows more efficient current collection and can also improve long term performance.
The SR6S-M cells use a novel junction formation technology which is standard in semiconductor manufacturing, this allows for improved minority carrier lifetimes and a very tigght distribution of cell performance in manufacturing, SR6S-M cells are PID free and further increase the cell efficiency allowing to increase the anerage module power distribution.




ELECTRICAL DATA(STC)
Rated Power in Watts-Pmax(Wp)	380W	385W	390W	395W	400W
Open Circuit Voltage-Voc(V)	48.9V	49.1V	49.3V	49.5V	49.8V
Short Circuit Current-Isc(A)	9.75A	9.92A	10.12A	10.23A	10.36A
Maximum Power Voltage-Vmp(V)	40.5V	40.8V	41.1V	41.4V	41.7V
Maximum Power Current-Imp(A)	9.39A	9.44A	9.49A	9.55A	9.60A
Module Efficiency(%)	19.16%	19.42%	19.67%	19.92%	20.17%



ELECTRICAL DATA(NOCT)
Maximum Power-Pmax(Wp)	286W	290W	294W	298W	302W
Open Circuit Voltage-Voc(V)	47.5V	47.7V	48.0V	48.2V	48.5V
Short Circuit Current-Isc(A)	7.88A	7.95A	8.02A	8.09A	8.16A
Maximum Power Voltage-Vmp(V)	38.60V	38.80V	39.1V	39.3V	39.6V
Maximum Power Current-Imp(A)	7.42A	7.48A	7.54A	7.60A	7.66A



MECHANICAL DATA
Solar Cells	Mono-crystalline 158.75x158.75mm, 5 Bus bars
Cell Configuration	72 cells(6x12)
Module Dimensions	1975x1002x40mm(77.91x39.45x1.57in)
Weight	22.5KG(49.6ibs)
Front Cover	3.2mm Tempered Glass
Frame Material	Anodized Aluminum Alloy
J-BOX	IP67
Cable	4mm²（IEC）/12AWG(UL),900mm
Connectors	MC4 or MC4 Comparable
Standard Packaging	26pcs/pallet



TEMPERATURE & MAXIMUM RATINGS
Nominal Operating Cell Temperature(NOCT)	45°C+-2°C
Temperature Coefficient of Voc	-0.32%/°C
Temperature Coefficient of Isc	0.05%/°C
Temperature Coefficient of Pmax	-0.39%/°C
Operational Temperature	-40~+85°C
Maximum System Voltage	1500V(IEC)
Max Series Fuse Rating	20A
Limiting Reverse Current	20A

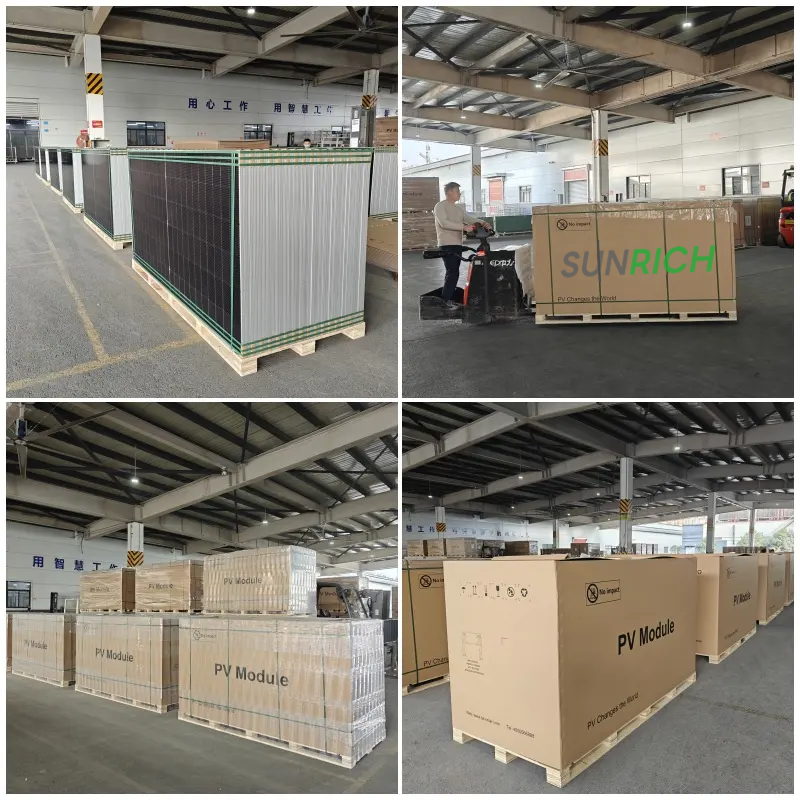

PACKAGING CONFIGURATION
	40HQ	20GP
Number of modules per container	720pcs	270pcs
Package	270pcs/pallet,2pcs/carton box	27pcs/pallet
Package Number	24pcs/pallet + 36 carton boxes	10 pallets
Package Weight	600kg/pallet, 46kg/carton box	600kg/pallet
Package Dimension	2003*1130*1130mm/pallet 2003*1012*90mm/carton box	2003*1130*130mm/pallet
