Details

---

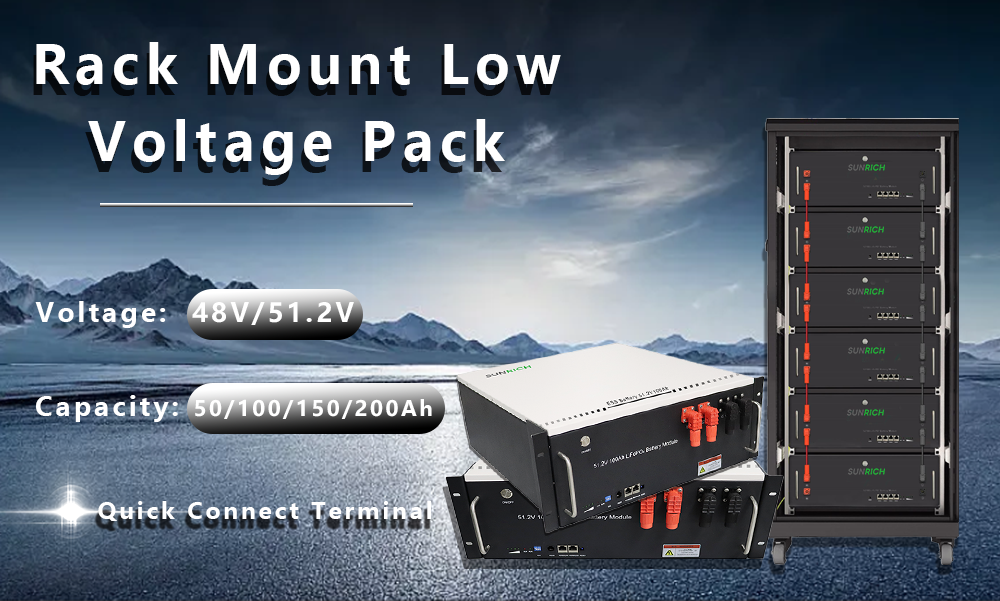

Product Display

---

Safe and Reliable

• Brand new A-grade lithium iron phosphate battery with high safety
• All-in-one BMS, real-time monitoring and management

System Services

• RS485/CAN communication, easy to expand
• Large capacity, high charging and discharging efficiency, more than 6000cycles

Technical Features

• Modular design, expand and increase battery capacity at any time
• Compatible with most inverters in the market, intelligent matching flexibility

Full Functioning

• Multi-function design, ON/OFF switch control output
• Alarm function to reduce potential safety hazards during battery use

Product Parameters

---

Product Description	Product Parameters
Product model	SR15S100BL-U	SR16S100BL-U	SR16S200BL-U	SR16S280BL-U
Cells in series	15S	16S	16S	16S
Rated energy(KWH)	4.8	5.0	10.24	14.3
Rated voltage(V)	48	51.2	51.2	51.2
Charging Voltage(V)	48	51.2	51.2	51.2
Discharge cut-off voltage(V)	40	42	42	42
Standard Charge Current(A)	20	20	20	56
Maximum Charging Current	100	100	100	100
Maximum Discharge Current(A)	100	100	100	100
Cycle life	≥6000 times @ 80% DOD, 25°C
Methods of Communication	RS485/CAN
Charging tempersture	0~60°C	0~60°C	0~60°C	0~60°C
Discharge tempersture	-10~65°C	-10~65°C	-10~65°C	-10~65°C
Product Dimensions(LxWxHmm)	515x493x175	515x493x175	630x490x255	768x450x275
Net Weight(kg)	42	45	88	105
Packing Dimensions(LxWxHmm)	550x523x230	550x523x230	710x570x455	855x550x345
Gross Weight(kg)	45	48	103	130

Feature Description

---
