10Kwh 51.2V 200Ah Lithium Ion Battery for Solar Energy System
Category: Wall Mounted Lithium Battery
Specifications
Details

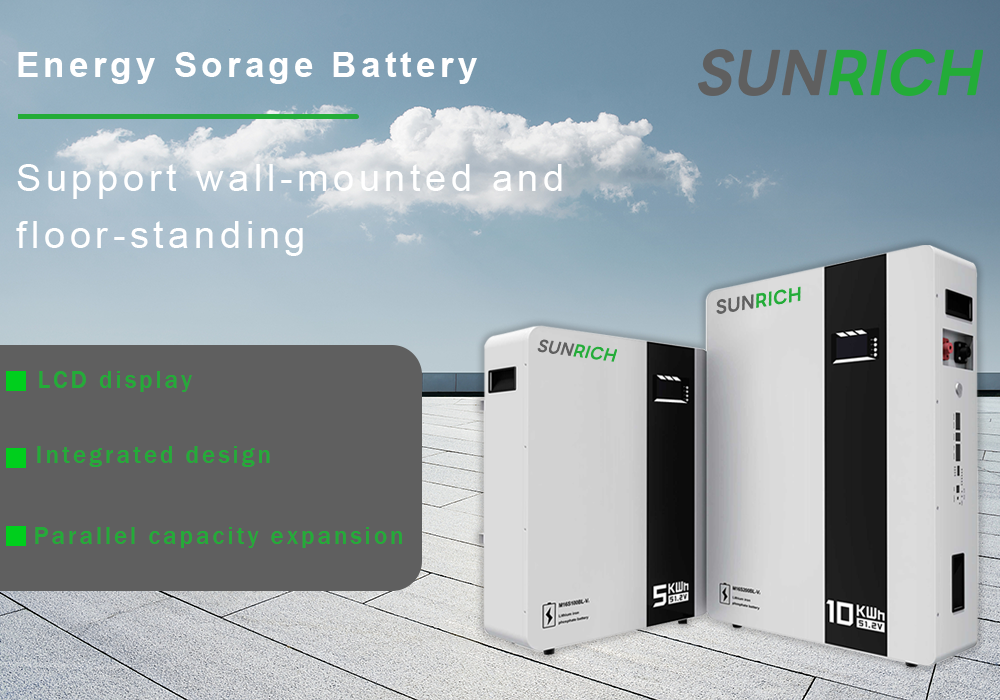

Product Display
Battery Features
- Original Grade A lithium iron phosphate battery cell has high safety and reliability.
- The charging and discharging efficiency is high, and the number of cycles is more than 3500 times.
- Compatible with most inverters on the market.
- Supporting RS485 and CAN communication.
- Modular design, can be expanded at any time to increase the energy of the system.
- Supporting up to 15 batteries in parallel.
- ON/OFF swithch control output.
- The LCD display monitors the operating status in real time.
| Production Description | ||
| Product Model | SR16S100BL-V | SR16S200BL-V |
| Cells In Series | 16S | 16S |
| Rated Energy(KWH) | 5.12 | 10.24 |
| Rated Voltage(V) | 51.2 | 51.2 |
| Charging Voltage(V) | 58.4 | 58.4 |
| Discharge Cut-off Voltage(V) | 42 | 42 |
| Standard Charge Current(A) | 20 | 40 |
| Maximum Charging Current(A) | 100 | 100 |
| Maximum Discharge Current(A) | 100 | 100 |
| Features | ||
| Cycle Life | ≥3500times@80%DOD, 25°C | ≥3500times@DOD, 25°C |
| Methods of Communication | RS232/RS485/CAN | RS232/RS485/CAN |
| Charging Temperature | 0~60°C | 0~60°C |
| Discharge Temperture | -10~65°C | -10~65°C |
| How It Is Displayed | LCD display | LCD display |
| IP Protection | IP 21 | IP 21 |
| Conventional | ||
| Product Dimensions(LxWxHmm) | 440x150x560 | 520x150x680 |
| Net Weight(Kg) | 44 | 80 |
| Packing Dimensions(LxWxHmm) | 525x340x645 | 595x316x755 |
| Cross Weight(Kg) | 50 | 98 |
Fields of Application
